INFLOW

Showing 19–27 of 29 results

DESALTER – INFLOW

The CANTY Inflow™ is a vision-based camera system used with the CANTY Vector System image processor for OiW & WiO concentration and size measurement in-line: the crude inlet, crude outlet, & effluent water. The CantyVision™ Software accurately measures multiple aspects of the OiW & WiO from oil / water / solids / gas independent of each other for accurate data. In comparison to a florescence monitor, which measures only oil and is affected by solids and gas in the stream. The CantyVision™ software can identify the differences and the customer can visually verify the readings. The Inflow™ can calibrated with the customers current lab method to make for easy instillation in the field. Determining PPM on the inlet will help optimize the desalter intake and verify what is entering the unit. Providing PPM on the outlets the desalter will benefit the effluent water side for EPA regulations as well as the crude side to increase production efficiency. The interface can be controlled through automaic sampling, instead of having to take sample test bottles. Video recording is an option for later analysis. In-line analysis makes sure production samples are not skipped over due to lack of time!

MORE INFO
Sugar Pan – Fuseview™

The Fuseview™ eliminates the chance of glass getting into the evaporators or sugar pans by over torque of the operators. Also, it allows for the sugar pan to pull full vacuum unlike tempered glass.

MORE INFO
CENTRIFUGE – CAMERA

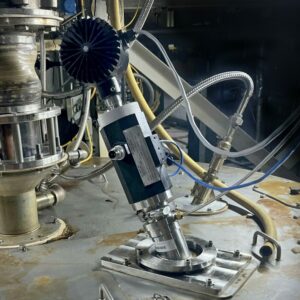

CANTY’s dynamic imaging technology uses a combined camera & light system mounted to the top of the centrifuge, to provide a remote view of the process conditions in the control room. The system can also be used in conjunction with CANTYVISION image analysis software to provide important process measurements. In a continuous centrifuge, the system can track the position of the color line, allowing the operator to adjust the feed conditions to maintain a relatively stationary color line position and optimize washing efficiency. In a batch centrifuge, the system can measure the product or “cake” thickness on the basket wall during filling, and determine when the product is dry enough after spinning, to move onto the next production stage without material quality / handling issues that may be caused by high moisture content.

MORE INFO
CENTRIFUGE – TURBIDITY MONITOR

The Canty Inflow™ is an excellent tool for controlling a centrifuge to determine percent solids & turbidity of filter breakthrough in the effluent stream, where product is being washed away. This is measured in-line in the effluent stream after the centrifuge.

MORE INFO
CLARIFIER – TURBIDITY MONITOR

CANTY provides a direct inline color & turbidity analyzer, to analyse the fluid discharged from the clarification process, in order to determine if it is within specification. Combining CANTY’s imaging, fused glass and lighting technologies, the colour of the liquid can be analysed on a number of color scales (YUV, RGB, Lab), which can be taken as a direct measurement, or related to a specific NTU or FTU turbidity value. The image analysis software has the ability to filter out any air bubbles from the analysis, meaning only a true color / turbidity measurement is performed on the fluid.

MORE INFO
INFLOW™ COLOR MEASUREMENT SYSTEM

Canty InFlow technology images the fluid to capture color and particle size, shape and distribution if desired. Systems have a fused glass-to-metal, smooth interface with the process which enables use in high temperature and pressure environments, and minimizes maintenance of the interface in extreme environments.

MORE INFO
INFLOW™ PERCENT SOLIDS MEASUREMENT SYSTEM

Percent Solids measurement is typically a ratio of the area of solid particles vs the background. As solid percentages increase this can also be done by comparing the ratio of light through an empty cell vs light through a cell with solid content. The analysis is frame by frame at a rate in excess of 30 frames per second, so data can be supplied in very short time intervals (seconds) and produce a steady trend line of percent solids readings vs time.

MORE INFO
INFLOW™ PARTICLE SIZING SYSTEM

.7 um – 4800 um Particle size analysis range for inline real time information. This system is designed for inline use with varying pressures, temperatures, and pipe diameters.

MORE INFO
INFLOW™ TURBIDITY MEASUREMENT SYSTEM

Turbidity analysis using a high resolution CCD/CMOS image sensor that detects turbidity changes in fluids by measuring the transmittance of light. Using advanced software algorithms the system automatically removes gas bubbles from the analysis resulting in highly accurate and repeatable data outputs. This system is designed for inline use with varying pressures, temperatures, and pipe diameters.

MORE INFO
